Industrial Meter Reader#

import os
from pathlib import Path
import numpy as np
import math
import cv2
import tarfile
import matplotlib.pyplot as plt
import openvino as ov

# Fetch `notebook_utils` module
import requests

r = requests.get(
    url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/notebook_utils.py",
)

open("notebook_utils.py", "w").write(r.text)
from notebook_utils import download_file, segmentation_map_to_image, device_widget

MODEL_DIR = "model"
DATA_DIR = "data"
DET_MODEL_LINK = "https://storage.openvinotoolkit.org/repositories/openvino_notebooks/models/meter-reader/meter_det_model.tar.gz"
SEG_MODEL_LINK = "https://storage.openvinotoolkit.org/repositories/openvino_notebooks/models/meter-reader/meter_seg_model.tar.gz"
DET_FILE_NAME = DET_MODEL_LINK.split("/")[-1]
SEG_FILE_NAME = SEG_MODEL_LINK.split("/")[-1]
IMG_LINK = "https://user-images.githubusercontent.com/91237924/170696219-f68699c6-1e82-46bf-aaed-8e2fc3fa5f7b.jpg"
IMG_FILE_NAME = IMG_LINK.split("/")[-1]
IMG_PATH = Path(f"{DATA_DIR}/{IMG_FILE_NAME}")

os.makedirs(MODEL_DIR, exist_ok=True)

download_file(DET_MODEL_LINK, directory=MODEL_DIR, show_progress=True)
file = tarfile.open(f"model/{DET_FILE_NAME}")
res = file.extractall("model")
if not res:
    print(f'Detection Model Extracted to "./{MODEL_DIR}".')
else:
    print("Error Extracting the Detection model. Please check the network.")

download_file(SEG_MODEL_LINK, directory=MODEL_DIR, show_progress=True)
file = tarfile.open(f"model/{SEG_FILE_NAME}")
res = file.extractall("model")
if not res:
    print(f'Segmentation Model Extracted to "./{MODEL_DIR}".')
else:
    print("Error Extracting the Segmentation model. Please check the network.")

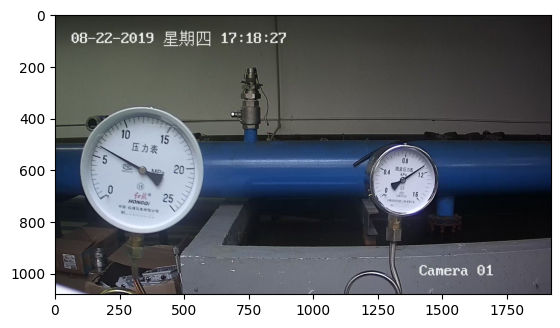

download_file(IMG_LINK, directory=DATA_DIR, show_progress=True)
if IMG_PATH.is_file():
    print(f'Test Image Saved to "./{DATA_DIR}".')
else:
    print("Error Downloading the Test Image. Please check the network.")

METER_SHAPE = [512, 512]
CIRCLE_CENTER = [256, 256]
CIRCLE_RADIUS = 250
PI = math.pi
RECTANGLE_HEIGHT = 120
RECTANGLE_WIDTH = 1570
TYPE_THRESHOLD = 40
COLORMAP = np.array([[28, 28, 28], [238, 44, 44], [250, 250, 250]])

# There are 2 types of meters in test image datasets
METER_CONFIG = [
    {"scale_interval_value": 25.0 / 50.0, "range": 25.0, "unit": "(MPa)"},
    {"scale_interval_value": 1.6 / 32.0, "range": 1.6, "unit": "(MPa)"},
]

SEG_LABEL = {"background": 0, "pointer": 1, "scale": 2}

# Initialize OpenVINO Runtime
core = ov.Core()


class Model:
    """
    This class represents a OpenVINO model object.

    """

    def __init__(self, model_path, new_shape, device="CPU"):
        """
        Initialize the model object

        Param:
            model_path (string): path of inference model
            new_shape (dict): new shape of model input

        """
        self.model = core.read_model(model=model_path)
        self.model.reshape(new_shape)
        self.compiled_model = core.compile_model(model=self.model, device_name=device)
        self.output_layer = self.compiled_model.output(0)

    def predict(self, input_image):
        """
        Run inference

        Param:
            input_image (np.array): input data

        Retuns:
            result (np.array)): model output data
        """
        result = self.compiled_model(input_image)[self.output_layer]
        return result

def det_preprocess(input_image, target_size):
    """
    Preprocessing the input data for detection task

    Param:
        input_image (np.array): input data
        size (int): the image size required by model input layer
    Retuns:
        img.astype (np.array): preprocessed image

    """
    img = cv2.resize(input_image, (target_size, target_size))
    img = np.transpose(img, [2, 0, 1]) / 255
    img = np.expand_dims(img, 0)
    img_mean = np.array([0.485, 0.456, 0.406]).reshape((3, 1, 1))
    img_std = np.array([0.229, 0.224, 0.225]).reshape((3, 1, 1))
    img -= img_mean
    img /= img_std
    return img.astype(np.float32)


def filter_bboxes(det_results, score_threshold):
    """
    Filter out the detection results with low confidence

    Param：
        det_results (list[dict]): detection results
        score_threshold (float)： confidence threshold

    Retuns：
        filtered_results (list[dict]): filter detection results

    """
    filtered_results = []
    for i in range(len(det_results)):
        if det_results[i, 1] > score_threshold:
            filtered_results.append(det_results[i])
    return filtered_results

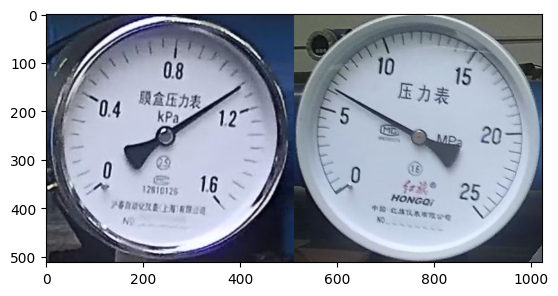

def roi_crop(image, results, scale_x, scale_y):
    """
    Crop the area of detected meter of original image

    Param：
        img (np.array)：original image。
        det_results (list[dict]): detection results
        scale_x (float): the scale value in x axis
        scale_y (float): the scale value in y axis

    Retuns：
        roi_imgs (list[np.array]): the list of meter images
        loc (list[int]): the list of meter locations

    """
    roi_imgs = []
    loc = []
    for result in results:
        bbox = result[2:]
        xmin, ymin, xmax, ymax = [
            int(bbox[0] * scale_x),
            int(bbox[1] * scale_y),
            int(bbox[2] * scale_x),
            int(bbox[3] * scale_y),
        ]
        sub_img = image[ymin : (ymax + 1), xmin : (xmax + 1), :]
        roi_imgs.append(sub_img)
        loc.append([xmin, ymin, xmax, ymax])
    return roi_imgs, loc


def roi_process(input_images, target_size, interp=cv2.INTER_LINEAR):
    """
    Prepare the roi image of detection results data
    Preprocessing the input data for segmentation task

    Param：
        input_images (list[np.array])：the list of meter images
        target_size (list|tuple)： height and width of resized image， e.g [heigh,width]
        interp (int)：the interp method for image reszing

    Retuns：
        img_list (list[np.array])：the list of processed images
        resize_img (list[np.array]): for visualization

    """
    img_list = list()
    resize_list = list()
    for img in input_images:
        img_shape = img.shape
        scale_x = float(target_size[1]) / float(img_shape[1])
        scale_y = float(target_size[0]) / float(img_shape[0])
        resize_img = cv2.resize(img, None, None, fx=scale_x, fy=scale_y, interpolation=interp)
        resize_list.append(resize_img)
        resize_img = resize_img.transpose(2, 0, 1) / 255
        img_mean = np.array([0.5, 0.5, 0.5]).reshape((3, 1, 1))
        img_std = np.array([0.5, 0.5, 0.5]).reshape((3, 1, 1))
        resize_img -= img_mean
        resize_img /= img_std
        img_list.append(resize_img)
    return img_list, resize_list

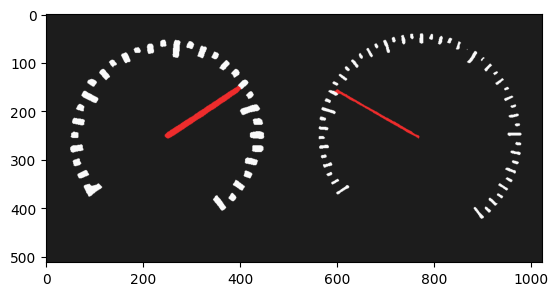

def erode(seg_results, erode_kernel):
    """
    Erode the segmentation result to get the more clear instance of pointer and scale

    Param：
        seg_results (list[dict])：segmentation results
        erode_kernel (int): size of erode_kernel

    Return：
        eroded_results (list[dict])： the lab map of eroded_results

    """
    kernel = np.ones((erode_kernel, erode_kernel), np.uint8)
    eroded_results = seg_results
    for i in range(len(seg_results)):
        eroded_results[i] = cv2.erode(seg_results[i].astype(np.uint8), kernel)
    return eroded_results


def circle_to_rectangle(seg_results):
    """
    Switch the shape of label_map from circle to rectangle

    Param：
        seg_results (list[dict])：segmentation results

    Return：
        rectangle_meters (list[np.array])：the rectangle of label map

    """
    rectangle_meters = list()
    for i, seg_result in enumerate(seg_results):
        label_map = seg_result

        # The size of rectangle_meter is determined by RECTANGLE_HEIGHT and RECTANGLE_WIDTH
        rectangle_meter = np.zeros((RECTANGLE_HEIGHT, RECTANGLE_WIDTH), dtype=np.uint8)
        for row in range(RECTANGLE_HEIGHT):
            for col in range(RECTANGLE_WIDTH):
                theta = PI * 2 * (col + 1) / RECTANGLE_WIDTH

                # The radius of meter circle will be mapped to the height of rectangle image
                rho = CIRCLE_RADIUS - row - 1
                y = int(CIRCLE_CENTER[0] + rho * math.cos(theta) + 0.5)
                x = int(CIRCLE_CENTER[1] - rho * math.sin(theta) + 0.5)
                rectangle_meter[row, col] = label_map[y, x]
        rectangle_meters.append(rectangle_meter)
    return rectangle_meters


def rectangle_to_line(rectangle_meters):
    """
    Switch the dimension of rectangle label map from 2D to 1D

    Param：
        rectangle_meters (list[np.array])：2D rectangle OF label_map。

    Return：
        line_scales (list[np.array])： the list of scales value
        line_pointers (list[np.array])：the list of pointers value

    """
    line_scales = list()
    line_pointers = list()
    for rectangle_meter in rectangle_meters:
        height, width = rectangle_meter.shape[0:2]
        line_scale = np.zeros((width), dtype=np.uint8)
        line_pointer = np.zeros((width), dtype=np.uint8)
        for col in range(width):
            for row in range(height):
                if rectangle_meter[row, col] == SEG_LABEL["pointer"]:
                    line_pointer[col] += 1
                elif rectangle_meter[row, col] == SEG_LABEL["scale"]:
                    line_scale[col] += 1
        line_scales.append(line_scale)
        line_pointers.append(line_pointer)
    return line_scales, line_pointers


def mean_binarization(data_list):
    """
    Binarize the data

    Param：
        data_list (list[np.array])：input data

    Return：
        binaried_data_list (list[np.array])：output data。

    """
    batch_size = len(data_list)
    binaried_data_list = data_list
    for i in range(batch_size):
        mean_data = np.mean(data_list[i])
        width = data_list[i].shape[0]
        for col in range(width):
            if data_list[i][col] < mean_data:
                binaried_data_list[i][col] = 0
            else:
                binaried_data_list[i][col] = 1
    return binaried_data_list


def locate_scale(line_scales):
    """
    Find ___location of center of each scale

    Param：
        line_scales (list[np.array])：the list of binaried scales value

    Return：
        scale_locations (list[list])：___location of each scale

    """
    batch_size = len(line_scales)
    scale_locations = list()
    for i in range(batch_size):
        line_scale = line_scales[i]
        width = line_scale.shape[0]
        find_start = False
        one_scale_start = 0
        one_scale_end = 0
        locations = list()
        for j in range(width - 1):
            if line_scale[j] > 0 and line_scale[j + 1] > 0:
                if not find_start:
                    one_scale_start = j
                    find_start = True
            if find_start:
                if line_scale[j] == 0 and line_scale[j + 1] == 0:
                    one_scale_end = j - 1
                    one_scale_location = (one_scale_start + one_scale_end) / 2
                    locations.append(one_scale_location)
                    one_scale_start = 0
                    one_scale_end = 0
                    find_start = False
        scale_locations.append(locations)
    return scale_locations


def locate_pointer(line_pointers):
    """
    Find ___location of center of pointer

    Param：
        line_scales (list[np.array])：the list of binaried pointer value

    Return：
        scale_locations (list[list])：___location of pointer

    """
    batch_size = len(line_pointers)
    pointer_locations = list()
    for i in range(batch_size):
        line_pointer = line_pointers[i]
        find_start = False
        pointer_start = 0
        pointer_end = 0
        ___location = 0
        width = line_pointer.shape[0]
        for j in range(width - 1):
            if line_pointer[j] > 0 and line_pointer[j + 1] > 0:
                if not find_start:
                    pointer_start = j
                    find_start = True
            if find_start:
                if line_pointer[j] == 0 and line_pointer[j + 1] == 0:
                    pointer_end = j - 1
                    ___location = (pointer_start + pointer_end) / 2
                    find_start = False
                    break
        pointer_locations.append(___location)
    return pointer_locations


def get_relative_location(scale_locations, pointer_locations):
    """
    Match ___location of pointer and scales

    Param：
        scale_locations (list[list])：___location of each scale
        pointer_locations (list[list])：___location of pointer

    Return：
        pointed_scales (list[dict])： a list of dict with:
                                     'num_scales': total number of scales
                                     'pointed_scale': predicted number of scales

    """
    pointed_scales = list()
    for scale_location, pointer_location in zip(scale_locations, pointer_locations):
        num_scales = len(scale_location)
        pointed_scale = -1
        if num_scales > 0:
            for i in range(num_scales - 1):
                if scale_location[i] <= pointer_location < scale_location[i + 1]:
                    pointed_scale = i + (pointer_location - scale_location[i]) / (scale_location[i + 1] - scale_location[i] + 1e-05) + 1
        result = {"num_scales": num_scales, "pointed_scale": pointed_scale}
        pointed_scales.append(result)
    return pointed_scales


def calculate_reading(pointed_scales):
    """
    Calculate the value of meter according to the type of meter

    Param：
        pointed_scales (list[list])：predicted number of scales

    Return：
        readings (list[float])： the list of values read from meter

    """
    readings = list()
    batch_size = len(pointed_scales)
    for i in range(batch_size):
        pointed_scale = pointed_scales[i]
        # find the type of meter according the total number of scales
        if pointed_scale["num_scales"] > TYPE_THRESHOLD:
            reading = pointed_scale["pointed_scale"] * METER_CONFIG[0]["scale_interval_value"]
        else:
            reading = pointed_scale["pointed_scale"] * METER_CONFIG[1]["scale_interval_value"]
        readings.append(reading)
    return readings
