Tutorial: Deploy Azure Functions as IoT Edge modules

Applies to: IoT Edge 1.5

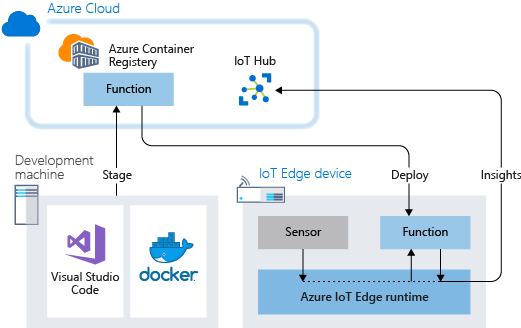

Use Azure Functions to deploy code that runs your business logic directly on your Azure IoT Edge devices. This tutorial shows you how to create and deploy an Azure Function that filters sensor data on a simulated IoT Edge device. Use the simulated IoT Edge device you created in the quickstarts. In this tutorial, you learn how to:

The Azure Function you create in this tutorial filters temperature data generated by your device. The function only sends messages upstream to Azure IoT Hub when the temperature is above a specified threshold.

If you don't have an Azure account, create a free account before you begin.

Prerequisites

Before you start this tutorial, follow the tutorial to set up your development environment for Linux container development: Develop Azure IoT Edge modules using Visual Studio Code. When you finish, you have the following prerequisites in place:

• A free or standard-tier IoT Hub in Azure
• An AMD64 device running Azure IoT Edge with Linux containers. Use the quickstart to set up a Linux device or Windows device.
• A container registry, like Azure Container Registry
• Visual Studio Code set up with the Azure IoT Edge and Azure IoT Hub extensions. The Azure IoT Edge tools for Visual Studio Code extension is in maintenance mode.
• Download and install a Docker compatible container management system on your development machine. Set it to run Linux containers.

To develop an IoT Edge module with Azure Functions, install these additional prerequisites on your development machine:

• C# for Visual Studio Code (powered by OmniSharp) extension
• The .NET Core SDK

Create a function project

Azure IoT Edge for Visual Studio Code gives you management capabilities and code templates. In this section, you use Visual Studio Code to create an IoT Edge solution with an Azure Function.

Create a new project

Follow these steps to create a customizable C# Function solution template.

1. Open Visual Studio Code on your development machine.

2. Open the Visual Studio Code command palette by selecting View > Command Palette.

3. In the command palette, add and run the command Azure IoT Edge: New IoT Edge solution. Follow these prompts in the command palette to create your solution:

   • Select a folder: choose the ___location on your development machine for Visual Studio Code to create the solution files.
   • Provide a solution name: add a descriptive name for your solution, like FunctionSolution, or accept the default.|
   • Select a module template: choose Azure Functions - C#.
   • Provide a module name | Name your module CSharpFunction.
   • Provide a Docker image repository for the module. An image repository includes the name of your container registry and the name of your container image. Your container image is pre-populated from the last step. Replace localhost:5000 with the Login server value from your Azure container registry. You can retrieve the Login server from the Overview page of your container registry in the Azure portal. The final string looks like <registry name>.azurecr.io/csharpfunction.



Add your registry credentials

The environment file in your solution stores the credentials for your container registry and shares them with the IoT Edge runtime. The runtime needs these credentials to pull your private images onto your IoT Edge device.

The IoT Edge extension in Visual Studio Code tries to pull your container registry credentials from Azure and populate them in the environment file. Check if your credentials are already in the file. If not, add them now:

1. In the Visual Studio Code explorer, open the .env file.
2. Update the fields with the username and password values you copied from your Azure container registry. To find them again, go to your container registry in Azure and look on the Settings > Access keys page.
3. Save this file.

Set target architecture to AMD64

Azure Functions modules on IoT Edge are supported only on Linux AMD64-based containers. The default target architecture for Visual Studio Code is Linux AMD64, but you set it explicitly to Linux AMD64 here.

1. Open the command palette and search for Azure IoT Edge: Set Default Target Platform for Edge Solution.

2. In the command palette, select the AMD64 target architecture from the list of options.

Update the module with custom code

Add some code so your CSharpFunction module processes messages at the edge before forwarding them to IoT Hub.

1. In the Visual Studio Code explorer, open modules > CSharpFunction > CSharpFunction.cs.

2. Replace the contents of the CSharpFunction.cs file with the following code. This code receives telemetry about ambient and machine temperature, and forwards the message to IoT Hub only if the machine temperature is above a defined threshold.

   using System;
   using System.Collections.Generic;
   using System.IO;
   using System.Text;
   using System.Threading.Tasks;
   using Microsoft.Azure.Devices.Client;
   using Microsoft.Azure.WebJobs;
   using Microsoft.Azure.WebJobs.Extensions.EdgeHub;
   using Microsoft.Azure.WebJobs.Host;
   using Microsoft.Extensions.Logging;
   using Newtonsoft.Json;

   namespace Functions.Samples
   {
       public static class CSharpFunction
       {
           [FunctionName("CSharpFunction")]
           public static async Task FilterMessageAndSendMessage(
               [EdgeHubTrigger("input1")] Message messageReceived,
               [EdgeHub(OutputName = "output1")] IAsyncCollector<Message> output,
               ILogger logger)
           {
               const int temperatureThreshold = 20;
               byte[] messageBytes = messageReceived.GetBytes();
               var messageString = System.Text.Encoding.UTF8.GetString(messageBytes);

               if (!string.IsNullOrEmpty(messageString))
               {
                   logger.LogInformation("Info: Received one non-empty message");
                   // Get the body of the message and deserialize it.
                   var messageBody = JsonConvert.DeserializeObject<MessageBody>(messageString);

                   if (messageBody != null && messageBody.machine.temperature > temperatureThreshold)
                   {
                       // Send the message to the output as the temperature value is greater than the threshold.
                       using (var filteredMessage = new Message(messageBytes))
                       {
                            // Copy the properties of the original message into the new Message object.
                            foreach (KeyValuePair<string, string> prop in messageReceived.Properties)
                            {filteredMessage.Properties.Add(prop.Key, prop.Value);}
                            // Add a new property to the message to indicate it is an alert.
                            filteredMessage.Properties.Add("MessageType", "Alert");
                            // Send the message.
                            await output.AddAsync(filteredMessage);
                            logger.LogInformation("Info: Received and transferred a message with temperature above the threshold");
                       }
                   }
               }
           }
       }
       //Define the expected schema for the body of incoming messages.
       class MessageBody
       {
           public Machine machine {get; set;}
           public Ambient ambient {get; set;}
           public string timeCreated {get; set;}
       }
       class Machine
       {
           public double temperature {get; set;}
           public double pressure {get; set;}
       }
       class Ambient
       {
           public double temperature {get; set;}
           public int humidity {get; set;}
       }
   }


3. Save the file.

Build and push your IoT Edge solution

In the previous section, you created an IoT Edge solution and changed the CSharpFunction to filter out messages with reported machine temperatures below the acceptable threshold. Now build the solution as a container image and push it to your container registry.

1. Open the Visual Studio Code integrated terminal. Select View > Terminal.

2. Sign in to Docker in the terminal. Use the username, password, and login server from your Azure container registry. Get these values from the Access keys section of your registry in the Azure portal.

   docker login -u <ACR username> -p <ACR password> <ACR login server>


   You can receive a security warning recommending the use of --password-stdin. While that best practice is recommended for production scenarios, it's outside the scope of this tutorial. For more information, see the docker login reference.

3. In the Visual Studio Code explorer, right-click the deployment.template.json file, then select Build and Push IoT Edge Solution.

   The build and push command starts three operations. First, it creates a new folder in the solution called config that has the full deployment manifest, which is built from the deployment template and other solution files. Second, it runs docker build to build the container image based on the appropriate Dockerfile for your target architecture. Then, it runs docker push to push the image repository to your container registry.

   This process can take several minutes the first time, but it's faster the next time you run the commands.

View your container image

Visual Studio Code shows a success message when your container image is pushed to your container registry. To confirm the operation, view the image in the registry.

1. In the Azure portal, go to your Azure container registry.
2. Select Services > Repositories.
3. You see the csharpfunction repository in the list. Select this repository to view more details.
4. In the Tags section, you see the 0.0.1-amd64 tag. This tag shows the version and platform of the image you built. These values are set in the module.json file in the CSharpFunction folder.

Deploy and run the solution

Use the Azure portal to deploy your Function module to an IoT Edge device like in the quickstart. You can also deploy and monitor modules from Visual Studio Code. The following sections use the Azure IoT Edge and IoT Hub for Visual Studio Code extensions listed in the prerequisites. Install the extensions now if you haven't already.

1. In the Visual Studio Code explorer, under the Azure IoT Hub section, expand Devices to see the list of IoT devices.

2. Right-click the name of your IoT Edge device, and then select Create Deployment for Single Device.

3. Go to the solution folder that has the CSharpFunction. Open the config folder, select the deployment.amd64.json file, and then choose Select Edge Deployment Manifest.

4. Under your device, expand Modules to see a list of deployed and running modules. Select the refresh button. You can see the new CSharpFunction running along with the SimulatedTemperatureSensor module, $edgeAgent, and $edgeHub.

   It can take a few moments for the new modules to show up. The IoT Edge device retrieves its new deployment information from IoT Hub, starts the new containers, and then reports the status back to IoT Hub.



View the generated data

See all messages that arrive at your IoT hub from your devices by running Azure IoT Hub: Start Monitoring Built-in Event Endpoint in the command palette. To stop monitoring messages, run Azure IoT Hub: Stop Monitoring Built-in Event Endpoint in the command palette.

To filter the view and see messages from a specific device, right-click the device in the Azure IoT Hub > Devices section of the Visual Studio Code explorer, and select Start Monitoring Built-in Event Endpoint.

Clean up resources

If you plan to continue to the next recommended article, keep the resources and configurations you created and reuse them. You can also keep using the same IoT Edge device as a test device.

Otherwise, delete the local configurations and the Azure resources you created in this article to avoid charges.

Delete Azure resources

Deleting Azure resources and resource groups is irreversible. Make sure that you don't accidentally delete the wrong resource group or resources. If you created the IoT Hub inside an existing resource group that has resources that you want to keep, delete only the IoT Hub resource itself, not the resource group.

To delete the resources:

1. Sign in to the Azure portal, and then select Resource groups.

2. Select the name of the resource group that contains your IoT Edge test resources.

3. Review the list of resources that your resource group contains. If you want to delete all of them, you can select Delete resource group. If you want to delete only some of them, you can select each resource to delete them individually.

Next steps

In this tutorial, you created an Azure Function module with code to filter raw data that's generated by your IoT Edge device.

Continue on to the next tutorials to learn other ways that Azure IoT Edge can help you turn data into business insights at the edge.
