Tutorial: Deploy Azure Stream Analytics as an IoT Edge module

Applies to: IoT Edge 1.5

In this tutorial, you create an Azure Stream Analytics job in the Azure portal and deploy it as an IoT Edge module with no extra code.

In this tutorial, you learn how to:

The Stream Analytics module in this tutorial calculates the average temperature over a rolling 30-second window. When the average reaches 70, the module sends an alert for the device to take action. In this case, the action is to reset the simulated temperature sensor. In a production environment, you can use this functionality to shut off a machine or take preventative measures when the temperature reaches dangerous levels.

Why use Azure Stream Analytics in IoT Edge?

Many IoT solutions use analytics services to gain insight about data as it arrives in the cloud from IoT devices. With Azure IoT Edge, you move Azure Stream Analytics logic onto the device itself. Processing telemetry streams at the edge reduces the amount of uploaded data and the time it takes to react to actionable insights. Azure IoT Edge and Azure Stream Analytics integrate to simplify your workload development.

Azure Stream Analytics uses a structured query syntax for data analysis in the cloud and on IoT Edge devices. For more information, see Azure Stream Analytics documentation.

Prerequisites

If you don't have an Azure account, create a free account before you begin.

• An Azure IoT Edge device.

  Use an Azure virtual machine as an IoT Edge device by following the steps in the quickstart for Linux or Windows devices.

• A free or standard-tier IoT Hub in Azure.

Create an Azure Stream Analytics job

In this section, you create an Azure Stream Analytics job that:

• Receives data from your IoT Edge device.
• Queries the telemetry data for values outside a set range.
• Takes action on the IoT Edge device based on the query results.

Create a storage account

When you create an Azure Stream Analytics job to run on an IoT Edge device, you need to store it so the device can access it. You can use an existing Azure Storage account or create a new one.

1. In the Azure portal, go to Create a resource > Storage > Storage account.

2. Provide the following values to create your storage account:

   Field	Value
   Subscription	Choose the same subscription as your IoT hub.
   Resource group	Use the same resource group for all your test resources for the IoT Edge quickstarts and tutorials. For example, IoTEdgeResources.
   Name	Provide a unique name for your storage account.
   Location	Select a ___location close to you.

3. Keep the default values for the other fields, and select Review + Create.

4. Review your settings, then select Create.

Create a new job

1. In the Azure portal, select:

   1. Create a resource
   2. Internet of Things from the menu on the left
   3. Type Stream Analytics in the search bar to find it in Azure Marketplace
   4. Select Create, then Stream Analytics job from the dropdown menu

2. Provide the following values to create your new Stream Analytics job:

   Field	Value
   Name	Provide a name for your job. For example, IoTEdgeJob
   Subscription	Choose the same subscription as your IoT hub.
   Resource group	Use the same resource group for all test resources you create during the IoT Edge quickstarts and tutorials. For example, a resource named IoTEdgeResources.
   Region	Choose a ___location close to you.
   Hosting environment	Select Edge. This option lets you deploy to an IoT Edge device instead of the cloud.

3. Select Review + create.

4. Confirm your options, then select Create.

Configure your job

After you create your Stream Analytics job in the Azure portal, configure it with an input, an output, and a query to run on the data that passes through.

This section shows how to create a job that receives temperature data from an IoT Edge device. It analyzes the data in a rolling 30-second window. If the average temperature in that window goes over 70 degrees, the job sends an alert to the IoT Edge device.

Set your input and output

1. Navigate to your Stream Analytics job in the Azure portal.

2. Under Job topology, select Inputs, then select Add input.

3. Choose Edge Hub from the dropdown list.

   If you don't see the Edge Hub option in the list, you might have created your Stream Analytics job as a cloud-hosted job. Try creating a new job, and make sure you select Edge as the hosting environment.

4. In the New input pane, enter temperature as the Input alias.

5. Keep the default values for the other fields, and select Save.

6. Under Job topology, select Outputs, then select Add.

7. Choose Edge Hub from the drop-down list.

8. In the New output pane, enter alert as the output alias.

9. Keep the default values for the other fields, and select Save.

Create a query

1. Under Job Topology, select Query.

2. Replace the default text with the following query:

   SELECT
       'reset' AS command
   INTO
      alert
   FROM
      temperature TIMESTAMP BY timeCreated
   GROUP BY TumblingWindow(second,30)
   HAVING Avg(machine.temperature) > 70


   In this query, the SQL code sends a reset command to the alert output if the average machine temperature in a 30-second window reaches 70 degrees. The reset command is preprogrammed into the sensor as an action.

3. Select Save query.

Configure IoT Edge settings

To deploy your Stream Analytics job on an IoT Edge device, associate your Azure Stream Analytics job with a storage account. When you deploy your job, the job definition exports to the storage account as a container.

1. In your Stream Analytics service, under the Settings menu, select Storage account settings.

2. Choose the Select Blob storage/ADLS Gen 2 from your subscriptions option.

3. Your Azure storage account automatically shows on the page. If you don't see one, make sure you create a storage. If you need to choose a different storage than the one listed in the Storage account field, select it from the dropdown menu.

4. Select Save if you made any changes.

Deploy the job

You're now ready to deploy the Azure Stream Analytics job on your IoT Edge device.

In this section, you use the Set Modules wizard in the Azure portal to create a deployment manifest. A deployment manifest is a JSON file that describes all the modules that get deployed to a device. The manifest also shows the container registries that store the module images, how the modules should be managed, and how the modules can communicate with each other. Your IoT Edge device retrieves its deployment manifest from IoT Hub, then uses the information in it to deploy and configure all of its assigned modules.

For this tutorial, you deploy two modules. The first is SimulatedTemperatureSensor, which is a module that simulates a temperature and humidity sensor. The second is your Stream Analytics job. The sensor module provides the stream of data that your job query analyzes.

1. In the Azure portal, navigate to your IoT hub.

2. Select Devices under the Device management menu, and then select your IoT Edge device to open it.

3. Select Set modules.

4. If you previously deployed the SimulatedTemperatureSensor module on this device, it might autopopulate. If it doesn't, add the module with the following steps:

   1. Select + Add and choose IoT Edge Module.
   2. For the name, type SimulatedTemperatureSensor.
   3. For the image URI, enter mcr.microsoft.com/azureiotedge-simulated-temperature-sensor:1.5.
   4. Leave the other default settings, then select Add.

5. Add your Azure Stream Analytics Edge job with the following steps:

   1. Select + Add and choose Azure Stream Analytics Module.
   2. Select your subscription and the Azure Stream Analytics Edge job that you created.
   3. Select Save.

   Once you save your changes, the details of your Stream Analytics job are published to the storage container that you created.

6. After your Stream Analytics addition finishes deployment, confirm that two new modules appear on your Set modules page.



7. Select Review + create. The deployment manifest appears.

8. Select Create.

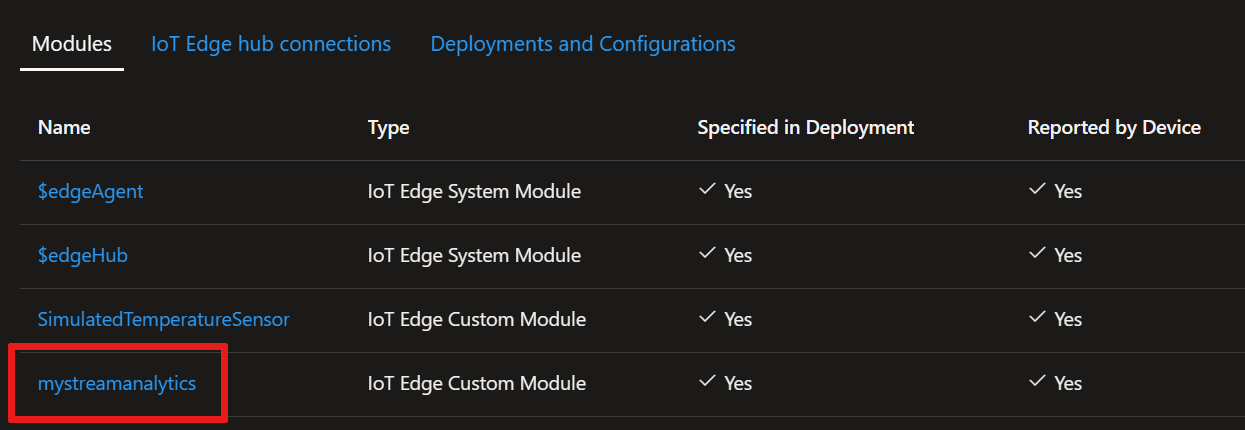

9. On your Set modules page of your device, after a few minutes, you should see the modules listed and running. Refresh the page if you don't see modules, or wait a few more minutes then refresh it again.

Understand the two new modules

1. From the Set modules tab of your device, select your Stream Analytics module name to take you to the Update IoT Edge Module page. Here you can update the settings.

   The Settings tab has the Image URI that points to a standard Azure Stream Analytics image. This single image is used for every Stream Analytics module that gets deployed to an IoT Edge device.

   The Module Twin Settings tab shows the JSON that defines the Azure Stream Analytics (ASA) property called ASAJobInfo. The value of that property points to the job definition in your storage container. This property is how the Stream Analytics image is configured with your specific job details.

   By default, the Stream Analytics module takes the same name as the job it's based on. You can change the module name on this page if you like, but it's not necessary.

2. Select Apply if you made changes or Cancel if you didn't make any changes.

Assign routes to your modules

1. On the Set modules on device:<your-device-name> page, select Next: Routes.

2. On the Routes tab, you define how messages are passed between modules and the IoT Hub. Messages are constructed using name and value pairs.

   Add the route names and values with the pairs shown in following table. Replace instances of {moduleName} with the name of your Azure Stream Analytics module. This module should be the same name you see in the modules list of your device on the Set modules page, as shown in the Azure portal.



   Name	Value
   telemetryToCloud	FROM /messages/modules/SimulatedTemperatureSensor/* INTO $upstream
   alertsToCloud	FROM /messages/modules/{moduleName}/* INTO $upstream
   alertsToReset	FROM /messages/modules/{moduleName}/* INTO BrokeredEndpoint("/modules/SimulatedTemperatureSensor/inputs/control")
   telemetryToAsa	FROM /messages/modules/SimulatedTemperatureSensor/* INTO BrokeredEndpoint("/modules/{moduleName}/inputs/temperature")

   The routes you declare here define the flow of data through the IoT Edge device. The telemetry data from SimulatedTemperatureSensor are sent to IoT Hub and to the temperature input that was configured in the Stream Analytics job. The alert output messages are sent to IoT Hub and to the SimulatedTemperatureSensor module to trigger the reset command.

3. Select Next: Review + Create.

4. In the Review + Create tab, you can see how the information you provided in the wizard is converted into a JSON deployment manifest.

5. When you're done reviewing the manifest, select Create to finish setting your module.

View data

Go to your IoT Edge device to see the interaction between the Azure Stream Analytics module and the SimulatedTemperatureSensor module.

1. Check that all the modules are running in Docker:

   iotedge list


2. View all system logs and metrics data. Replace {moduleName} with the name of your Azure Stream Analytics module:

   iotedge logs -f {moduleName}

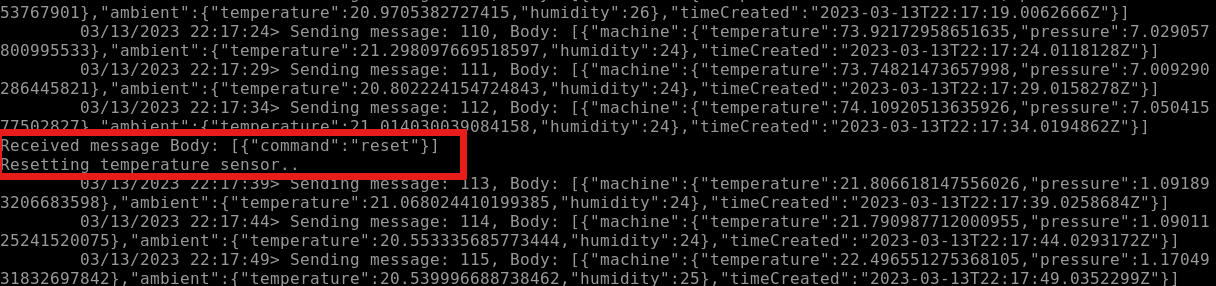

3. See how the reset command affects the SimulatedTemperatureSensor by viewing the sensor logs:

   iotedge logs SimulatedTemperatureSensor


   You can watch the machine's temperature gradually rise until it reaches 70 degrees for 30 seconds. Then the Stream Analytics module triggers a reset, and the machine temperature drops back to 21.



Clean up resources

If you want to continue to the next recommended article, keep the resources and configurations you created and reuse them. You can also keep using the same IoT Edge device as a test device.

Otherwise, delete the local configurations and Azure resources you used in this article to avoid charges.

Delete Azure resources

Deleting Azure resources and resource groups is irreversible. Make sure that you don't accidentally delete the wrong resource group or resources. If you created the IoT Hub inside an existing resource group that has resources that you want to keep, delete only the IoT Hub resource itself, not the resource group.

To delete the resources:

1. Sign in to the Azure portal, and then select Resource groups.

2. Select the name of the resource group that contains your IoT Edge test resources.

3. Review the list of resources that your resource group contains. If you want to delete all of them, you can select Delete resource group. If you want to delete only some of them, you can select each resource to delete them individually.

Next steps

In this tutorial, you set up an Azure Stream Analytics job to analyze data from your IoT Edge device. You loaded the Azure Stream Analytics module on your IoT Edge device to process and react to temperature increases locally, and sent the aggregated data stream to the cloud. To learn how Azure IoT Edge can help you build more solutions, try next tutorial.
