使用 Apache Flink® DataStream API 将消息写入 Apache HBase®

2024-09-20

重要

AKS 上的 Azure HDInsight 已于 2025 年 1 月 31 日停用。通过此公告了解更多信息。

需要将工作负荷迁移到 Microsoft Fabric 或等效的 Azure 产品，以避免工作负荷突然终止。

重要

此功能目前以预览版提供。 Microsoft Azure 预览版补充使用条款包括适用于 beta 版、预览版或尚未正式发布的 Azure 功能的更多法律条款。有关此特定预览版的信息，请参阅 Azure HDInsight 在 AKS 上的预览信息。有关问题或功能建议，请在 AskHDInsight 上提交一个请求，其中包含详细信息，并关注我们以获取有关 Azure HDInsight 社区的详细信息。

本文介绍如何使用 Apache Flink DataStream API 将消息写入 HBase。

概述

Apache Flink 将 HBase 连接器作为接收器提供，此连接器与 Flink 配合使用，可以将实时处理应用程序的输出存储在 HBase 中。了解如何在 HDInsight Kafka 上处理流数据，将其作为源并执行转换，然后存入 HDInsight HBase 表。

在实际方案中，此示例是一个流分析层，用于实现物联网（IOT）分析的价值，该分析使用实时传感器数据。 Flink Stream 可以从 Kafka 项目读取数据并将其写入 HBase 表。如果有实时流式处理 IOT 应用程序，则可以收集、转换和优化信息。

先决条件

在 AKS 上使用 HDInsight 的 Apache Flink 集群
HDInsight 上的 Apache Kafka 群集
HDInsight 上的 Apache HBase 2.4.11 群集
- 需要确保 AKS 群集上的 HDInsight 能够连接到具有相同虚拟网络的 HDInsight 群集。
IntelliJ IDEA 上的 Maven 项目，用于在同一 VNet 中的 Azure VM 上进行开发

实现步骤

使用管道生成 Kafka 主题（用户单击事件主题）

weblog.py

import json
import random
import time
from datetime import datetime

user_set = [
        'John',
        'XiaoMing',
        'Mike',
        'Tom',
        'Machael',
        'Zheng Hu',
        'Zark',
        'Tim',
        'Andrew',
        'Pick',
        'Sean',
        'Luke',
        'Chunck'
]

web_set = [
        'https://github.com',
        'https://www.bing.com/new',
        'https://kafka.apache.org',
        'https://hbase.apache.org',
        'https://flink.apache.org',
        'https://spark.apache.org',
        'https://trino.io',
        'https://hadoop.apache.org',
        'https://stackoverflow.com',
        'https://docs.python.org',
        'https://azure.microsoft.com/products/category/storage',
        '/azure/hdinsight/hdinsight-overview',
        'https://azure.microsoft.com/products/category/storage'
]

def main():
        while True:
                if random.randrange(13) < 4:
                        url = random.choice(web_set[:3])
                else:
                        url = random.choice(web_set)

                log_entry = {
                        'userName': random.choice(user_set),
                        'visitURL': url,
                        'ts': datetime.now().strftime("%m/%d/%Y %H:%M:%S")
                }

                print(json.dumps(log_entry))
                time.sleep(0.05)

if __name__ == "__main__":
    main()

使用管道生成 Apache Kafka 主题

我们将使用 click_events 作为 Kafka 主题

python weblog.py | /usr/hdp/current/kafka-broker/bin/kafka-console-producer.sh --bootstrap-server wn0-contsk:9092 --topic click_events

Kafka 上的示例命令

-- create topic (replace with your Kafka bootstrap server)
/usr/hdp/current/kafka-broker/bin/kafka-topics.sh --create --replication-factor 2 --partitions 3 --topic click_events --bootstrap-server wn0-contsk:9092

-- delete topic (replace with your Kafka bootstrap server)
/usr/hdp/current/kafka-broker/bin/kafka-topics.sh --delete  --topic click_events --bootstrap-server wn0-contsk:9092

-- produce topic (replace with your Kafka bootstrap server)
python weblog.py | /usr/hdp/current/kafka-broker/bin/kafka-console-producer.sh --bootstrap-server wn0-contsk:9092 --topic click_events

-- consume topic
/usr/hdp/current/kafka-broker/bin/kafka-console-consumer.sh --bootstrap-server wn0-contsk:9092 --topic click_events --from-beginning
{"userName": "Luke", "visitURL": "https://azure.microsoft.com/products/category/storage", "ts": "07/11/2023 06:39:43"}
{"userName": "Sean", "visitURL": "https://www.bing.com/new", "ts": "07/11/2023 06:39:43"}
{"userName": "XiaoMing", "visitURL": "https://hbase.apache.org", "ts": "07/11/2023 06:39:43"}
{"userName": "Machael", "visitURL": "https://www.bing.com/new", "ts": "07/11/2023 06:39:43"}
{"userName": "Andrew", "visitURL": "https://github.com", "ts": "07/11/2023 06:39:43"}
{"userName": "Zark", "visitURL": "https://kafka.apache.org", "ts": "07/11/2023 06:39:43"}
{"userName": "XiaoMing", "visitURL": "https://trino.io", "ts": "07/11/2023 06:39:43"}
{"userName": "Zark", "visitURL": "https://flink.apache.org", "ts": "07/11/2023 06:39:43"}
{"userName": "Mike", "visitURL": "https://kafka.apache.org", "ts": "07/11/2023 06:39:43"}
{"userName": "Zark", "visitURL": "https://docs.python.org", "ts": "07/11/2023 06:39:44"}
{"userName": "John", "visitURL": "https://www.bing.com/new", "ts": "07/11/2023 06:39:44"}
{"userName": "Mike", "visitURL": "https://hadoop.apache.org", "ts": "07/11/2023 06:39:44"}
{"userName": "Tim", "visitURL": "https://www.bing.com/new", "ts": "07/11/2023 06:39:44"}
.....

在 HDInsight 群集上创建 HBase 表

root@hn0-contos:/home/sshuser# hbase shell
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/hdp/5.1.1.3/hadoop/lib/slf4j-reload4j-1.7.35.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/usr/hdp/5.1.1.3/hbase/lib/client-facing-thirdparty/slf4j-reload4j-1.7.33.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Reload4jLoggerFactory]
HBase Shell
Use "help" to get list of supported commands.
Use "exit" to quit this interactive shell.
For more information, see, http://hbase.apache.org/2.0/book.html#shell
Version 2.4.11.5.1.1.3, rUnknown, Thu Apr 20 12:31:07 UTC 2023
Took 0.0032 seconds
hbase:001:0> create 'user_click_events','user_info'
Created table user_click_events
Took 5.1399 seconds
=> Hbase::Table - user_click_events
hbase:002:0>

开发在 Flink 上上传 jar 的项目

使用以下 pom.xml创建 maven 项目

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>contoso.example</groupId>
    <artifactId>FlinkHbaseDemo</artifactId>
    <version>1.0-SNAPSHOT</version>
    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <flink.version>1.17.0</flink.version>
        <java.version>1.8</java.version>
        <scala.binary.version>2.12</scala.binary.version>
        <hbase.version>2.4.11</hbase.version>
        <kafka.version>3.2.0</kafka.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-streaming-java -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-clients -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-hbase-base -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-hbase-base</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.hbase/hbase-client -->
        <dependency>
            <groupId>org.apache.hbase</groupId>
            <artifactId>hbase-client</artifactId>
            <version>${hbase.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>3.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-base -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-base</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-core</artifactId>
            <version>${flink.version}</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>3.0.0</version>
                <configuration>
                    <appendAssemblyId>false</appendAssemblyId>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

源代码

编写 HBase Sink 程序

HBaseWriterSink

package contoso.example;

import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.functions.sink.RichSinkFunction;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;

public class HBaseWriterSink extends RichSinkFunction<Tuple3<String,String,String>> {
    String hbase_zk = "<update-hbasezk-ip>:2181,<update-hbasezk-ip>:2181,<update-hbasezk-ip>:2181";
    Connection hbase_conn;
    Table tb;
    int i = 0;
    @Override
    public void open(Configuration parameters) throws Exception {
        super.open(parameters);
        org.apache.hadoop.conf.Configuration hbase_conf = HBaseConfiguration.create();
        hbase_conf.set("hbase.zookeeper.quorum", hbase_zk);
        hbase_conf.set("zookeeper.znode.parent", "/hbase-unsecure");
        hbase_conn = ConnectionFactory.createConnection(hbase_conf);
        tb = hbase_conn.getTable(TableName.valueOf("user_click_events"));
    }

    @Override
    public void invoke(Tuple3<String,String,String> value, Context context) throws Exception {
        byte[] rowKey = Bytes.toBytes(String.format("%010d", i++));
        Put put = new Put(rowKey);
        put.addColumn(Bytes.toBytes("user_info"), Bytes.toBytes("userName"), Bytes.toBytes(value.f0));
        put.addColumn(Bytes.toBytes("user_info"), Bytes.toBytes("visitURL"), Bytes.toBytes(value.f1));
        put.addColumn(Bytes.toBytes("user_info"), Bytes.toBytes("ts"), Bytes.toBytes(value.f2));
        tb.put(put);
    };

    public void close() throws Exception {
        if (null != tb) tb.close();
        if (null != hbase_conn) hbase_conn.close();
    }
}

main: KafkaSinkToHbase

编写用于 HBase 的 Kafka Sink 程序

package contoso.example;

import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.common.typeinfo.Types;

import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.connector.kafka.source.KafkaSource;
import org.apache.flink.connector.kafka.source.enumerator.initializer.OffsetsInitializer;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

public class KafkaSinkToHbase {
    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);
        String kafka_brokers = "10.0.0.38:9092,10.0.0.39:9092,10.0.0.40:9092";

        KafkaSource<String> source = KafkaSource.<String>builder()
                .setBootstrapServers(kafka_brokers)
                .setTopics("click_events")
                .setGroupId("my-group")
                .setStartingOffsets(OffsetsInitializer.earliest())
                .setValueOnlyDeserializer(new SimpleStringSchema())
                .build();

        DataStreamSource<String> kafka = env.fromSource(source, WatermarkStrategy.noWatermarks(), "Kafka Source").setParallelism(1);
        DataStream<Tuple3<String,String,String>> dataStream = kafka.map(line-> {
            String[] fields = line.toString().replace("{","").replace("}","").
            replace("\"","").split(",");
            Tuple3<String, String,String> tuple3 = Tuple3.of(fields[0].substring(10),fields[1].substring(11),fields[2].substring(5));
            return tuple3;
        }).returns(Types.TUPLE(Types.STRING,Types.STRING,Types.STRING));

        dataStream.addSink(new HBaseWriterSink());

        env.execute("Kafka Sink To Hbase");
    }
}

提交作业

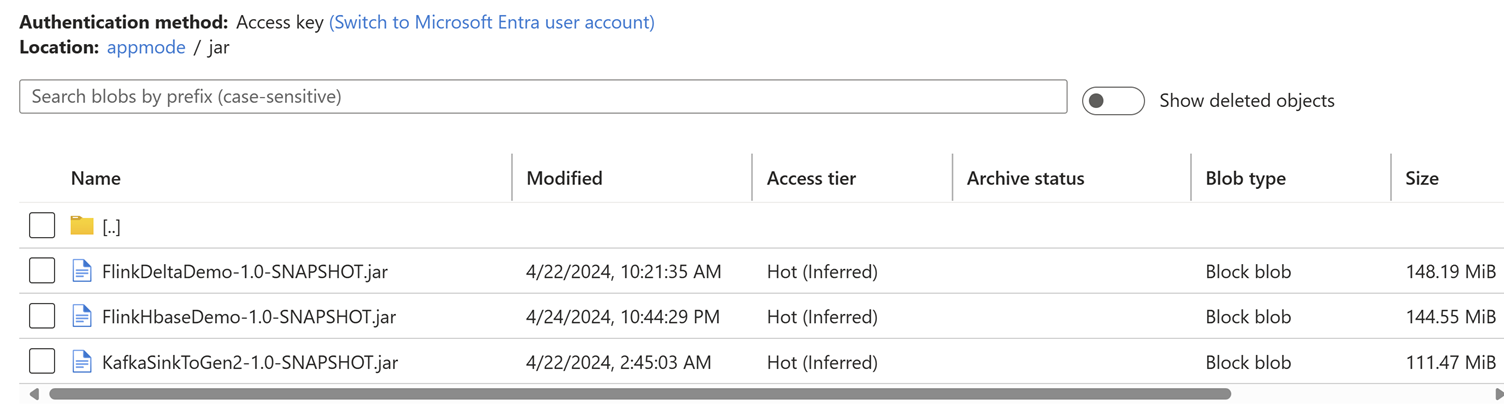

将作业 Jar 上传到与群集关联的存储帐户。

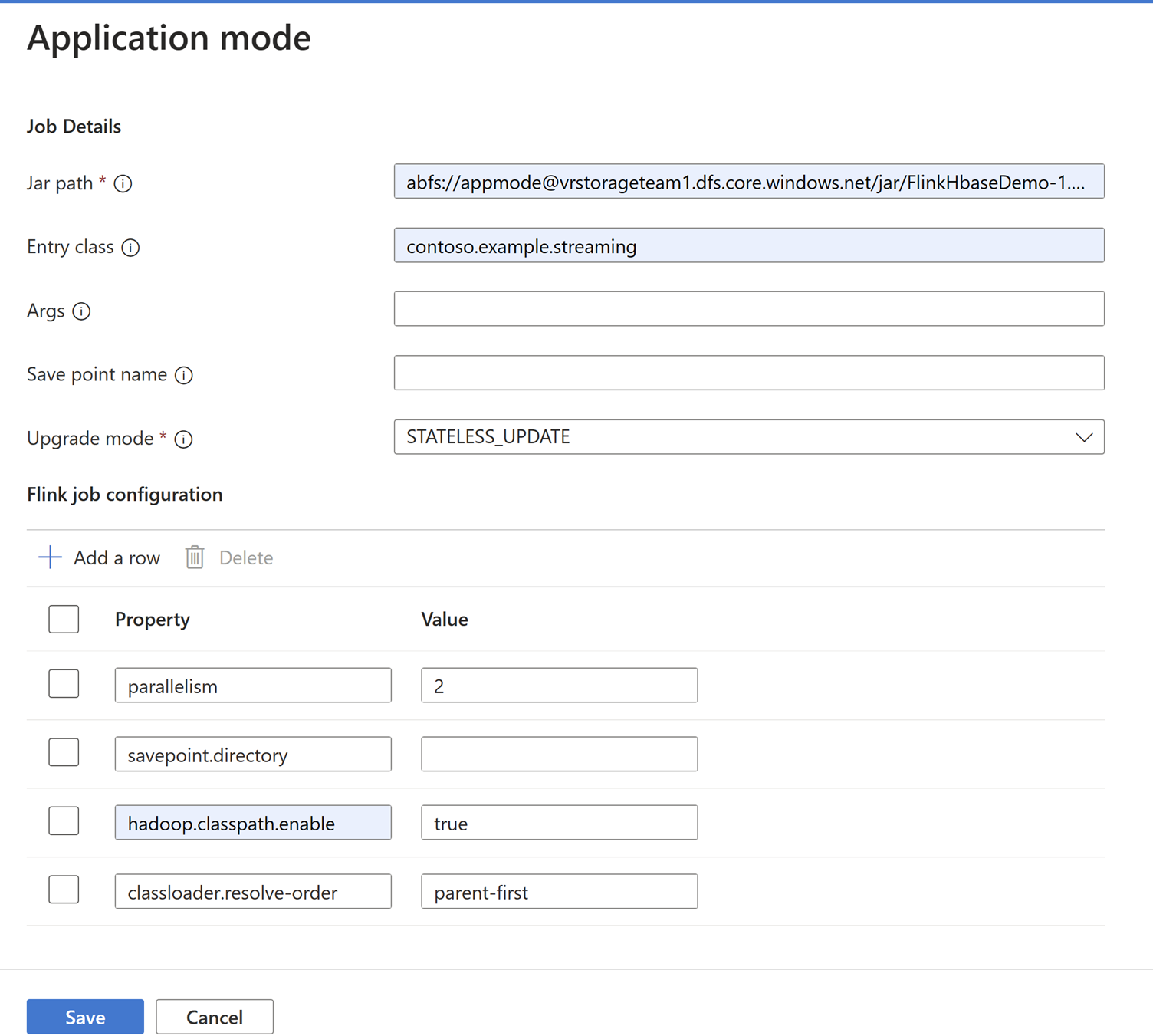

在“应用程序模式”选项卡中添加作业详细信息。

注意

请确保添加 Hadoop.class.enable 和 classloader.resolve-order 设置。
选择 作业日志聚合 以将日志存储在 ABFS 中。
提交作业。
应能够在此处查看作业提交的状态。

验证 HBase 表数据

hbase:001:0> scan 'user_click_events',{LIMIT=>5}
ROW                                  COLUMN+CELL
0000000000                          column=user_info:ts, timestamp=2024-03-20T02:02:46.932, value=03/20/2024 02:02:43
0000000000                          column=user_info:userName, timestamp=2024-03-20T02:02:46.932, value=Pick
0000000000                          column=user_info:visitURL, timestamp=2024-03-20T02:02:46.932, value=
https://hadoop.apache.org
0000000001                          column=user_info:ts, timestamp=2024-03-20T02:02:46.991, value=03/20/2024 02:02:43
0000000001                          column=user_info:userName, timestamp=2024-03-20T02:02:46.991, value=Zheng Hu
0000000001                          column=user_info:visitURL, timestamp=2024-03-20T02:02:46.991, value=/azure/hdinsight/hdinsight-overview
0000000002                          column=user_info:ts, timestamp=2024-03-20T02:02:47.001, value=03/20/2024 02:02:43
0000000002                          column=user_info:userName, timestamp=2024-03-20T02:02:47.001, value=Sean
0000000002                          column=user_info:visitURL, timestamp=2024-03-20T02:02:47.001, value=
https://spark.apache.org
0000000003                          column=user_info:ts, timestamp=2024-03-20T02:02:47.008, value=03/20/2024 02:02:43
0000000003                          column=user_info:userName, timestamp=2024-03-20T02:02:47.008, value=Zheng Hu
0000000003                          column=user_info:visitURL, timestamp=2024-03-20T02:02:47.008, value=
https://kafka.apache.org
0000000004                          column=user_info:ts, timestamp=2024-03-20T02:02:47.017, value=03/20/2024 02:02:43
0000000004                          column=user_info:userName, timestamp=2024-03-20T02:02:47.017, value=Chunck
0000000004                          column=user_info:visitURL, timestamp=2024-03-20T02:02:47.017, value=
https://github.com
5 row(s)
Took 0.9269 seconds

注意

FlinkKafkaConsumer 已弃用并在 Flink 1.17 中被移除，请使用 KafkaSource 作为替代。
FlinkKafkaProducer 已被弃用，并在 Flink 1.15 中被移除，请改用 KafkaSink。

引用

Apache Kafka 连接器
下载 IntelliJ IDEA
Apache、Apache Kafka、Kafka、Apache HBase、HBase、Apache Flink、Flink 和关联的开源项目名称是 Apache Software Foundation（ASF）的商标。

通过
