Tutorial: Migrate Oracle WebLogic Server to Azure Kubernetes Service (AKS) within a custom virtual network

This tutorial shows you how to deploy the Oracle WebLogic Server (WLS) on Azure Kubernetes Service (AKS) offer that integrates with a preexisting virtual network in your subscription.

In this tutorial, you learn how to:

Prerequisites

• An Azure subscription. If you don't have an Azure subscription, create a free account before you begin.
• Prepare a local machine with Unix-like operating system installed - for example, Ubuntu, macOS, or Windows Subsystem for Linux.
• Install the Azure CLI 2.73.0 or above to run Azure CLI commands.
  • Sign in with Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. See Sign into Azure with Azure CLI for other sign-in options.
  • When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use and manage extensions with the Azure CLI.
  • Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.
• The WLS on AKS marketplace offer requires permission to create user-assign managed identity and assign Azure roles. To assign Azure roles, you must have Microsoft.Authorization/roleAssignments/write permissions, such as User Access Administrator or Owner.
• An Oracle account. The steps in Oracle Container Registry direct you to accept the license agreement for WebLogic Server images. Make note of your Oracle Account password and email.

Create a resource group

Create a resource group with az group create. This example creates a resource group named myResourceGroup in the eastus ___location:

export RESOURCE_GROUP_NAME="myResourceGroup"
export LOCATION=eastus
az group create \
    --name ${RESOURCE_GROUP_NAME} \
    --___location ${LOCATION}

Create a custom virtual network

There are constraints when creating a custom virtual network. Before you create the virtual network in your environment, read the following articles:

• Network concepts for applications in Azure Kubernetes Service (AKS).
• Application Gateway infrastructure configuration.

The example in this section creates a virtual network with address space 192.168.0.0/16, and creates two subnets used for AKS and Application Gateway.

First, create a virtual network by using az network vnet create. The following example creates a default virtual network named myVNet:

az network vnet create \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --name myVNet \
    --address-prefixes 192.168.0.0/16 \
    --___location ${LOCATION}

Next, create a subnet by using az network vnet subnet create for the AKS cluster. The following example creates a subnet named myAKSSubnet:

az network vnet subnet create \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --name myAKSSubnet \
    --vnet-name myVNet \
    --address-prefixes 192.168.1.0/24

Next, create another subnet for the Application Gateway by using az network vnet subnet create. The following example creates a subnet named myAppGatewaySubnet:

az network vnet subnet create \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --name myAppGatewaySubnet \
    --vnet-name myVNet \
    --address-prefixes 192.168.2.0/24

Next, use the following command to get the AKS subnet resource ID and store it in a variable for use later in this article:

export AKS_SUBNET_ID=$(az network vnet subnet show \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --vnet-name myVNet \
    --name myAKSSubnet \
    --query id \
    --output tsv)

Create an AKS cluster in the virtual network

Use the following command to create an AKS cluster in your virtual network and subnet by using the az aks create command.

az aks create \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --name myAKSCluster \
    --generate-ssh-keys \
    --enable-managed-identity \
    --node-count 3 \
    --node-vm-size Standard_DS3_v2 \
    --network-plugin azure \
    --vnet-subnet-id $AKS_SUBNET_ID \
    --yes

Store Jakarta EE applications in a Storage account

You can deploy a Jakarta EE Application along with the WLS on AKS offer deployment. You have to upload the application file (.war, .ear, or .jar) to a preexisting Azure Storage Account and Storage Container within that account.

Create an Azure Storage Account using the az storage account create command, as shown in the following example:

export STORAGE_ACCOUNT_NAME="stgwlsaks$(date +%s)"
az storage account create \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --name ${STORAGE_ACCOUNT_NAME} \
    --___location ${LOCATION} \
    --sku Standard_RAGRS \
    --kind StorageV2

Create a container for storing blobs with the az storage container create command. The following example uses the storage account key to authorize the operation to create the container. You can also use your Microsoft Entra account to authorize the operation to create the container. For more information, see Authorize access to blob or queue data with Azure CLI.

export KEY=$(az storage account keys list \
    --resource-group ${RESOURCE_GROUP_NAME} \
    --account-name ${STORAGE_ACCOUNT_NAME} \
    --query \[0\].value \
    --output tsv)

az storage container create \
    --account-name ${STORAGE_ACCOUNT_NAME} \
    --name mycontainer \
    --account-key ${KEY} \
    --auth-mode key

Next, upload your Jakarta EE application to a blob using the az storage blob upload command. The following example uploads the testwebapp.war test application.

curl -fsL https://aka.ms/wls-aks-testwebapp -o testwebapp.war

az storage blob upload \
    --account-name ${STORAGE_ACCOUNT_NAME} \
    --container-name mycontainer \
    --name testwebapp.war \
    --file testwebapp.war \
    --account-key ${KEY} \
    --auth-mode key

To upload multiple files at the same time, see Create, download, and list blobs with Azure CLI.

Deploy WLS on the AKS offer

This section shows you how to provision a WLS cluster with the AKS instance you created previously. The offer uses the existing cluster within the custom virtual network and export cluster nodes using Azure Application Gateway as the load balancer. The offer automatically generates a self-signed certificate for Application Gateway TLS/SSL termination. For advanced usage of TLS/SSL termination with Application Gateway, see Application Gateway Ingress Controller.

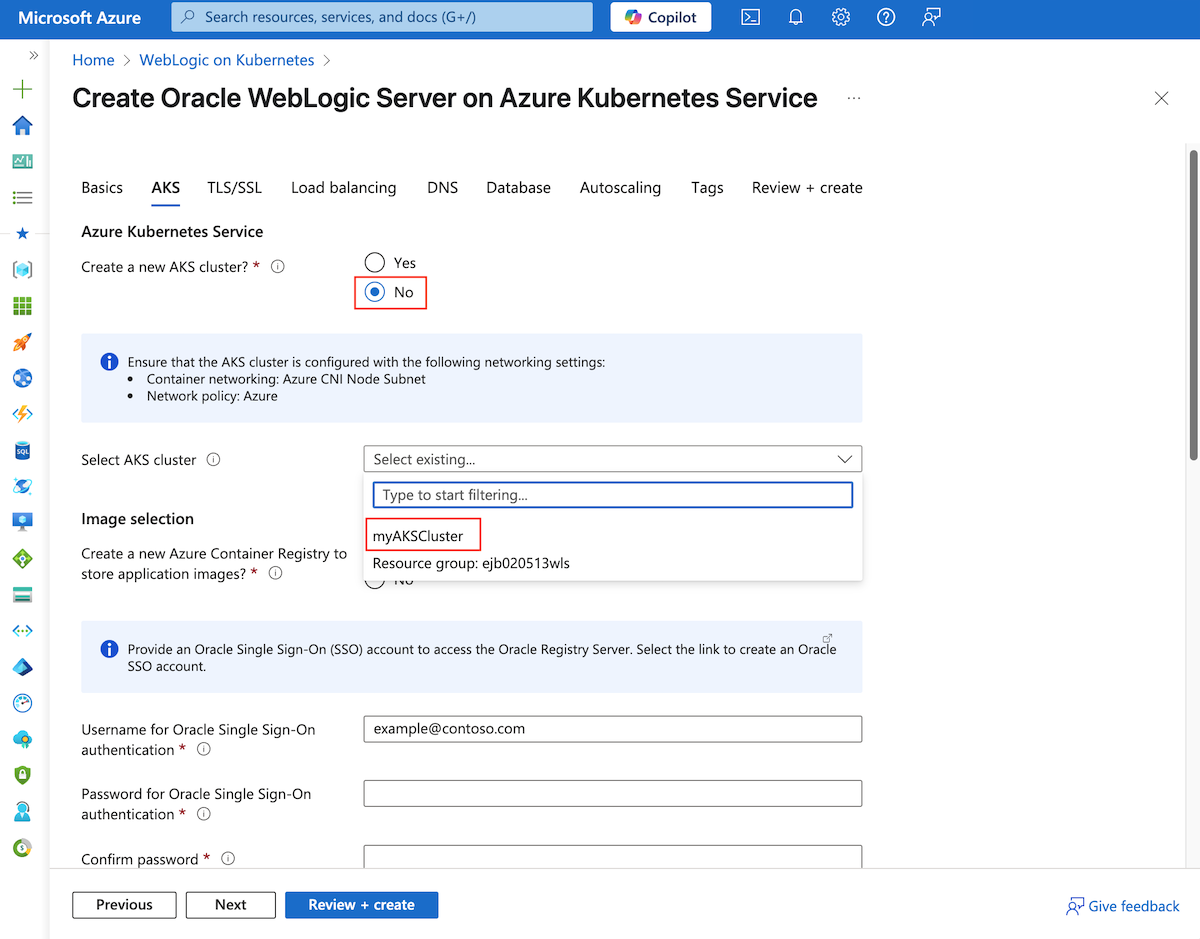

First, begin the process of deploying a WebLogic Server as described in Oracle WebLogic Server on AKS user guide, but come back to this page when you reach the AKS pane, as shown in the following screenshot.

Configure the AKS cluster

Now that you have an AKS cluster within the virtual network, select the AKS cluster for the deployment.

1. For Create a new AKS cluster?, select No.
2. Under Select AKS cluster, open the dropdown menu, then select the AKS cluster you created, named myAKSCluster in this example.
3. For Use a pre-existing, WebLogic Server Docker image from Oracle Container Registry?, select Yes.
4. For Create a new Azure Container Registry to store application images?, select Yes.
5. Under Username for Oracle Single Sign-on authentication, input your Oracle single sign-on account user name.
6. Under Password for Oracle Single Sign-on authentication, input the password for that account.
7. Under Confirm password, reenter the value of the preceding field.
8. For all other fields except Deploy an application, keep the default values.
9. For Deploy an application, select Yes.
10. For Application package (.war,.ear,.jar), select Browse.
    • Select the storage account you created. The name starts with stgwlsaks in this example.
    • Select your container in Containers page. This example uses mycontainer.
    • Check your application listed in the container. This example uses testwebapp.war.
    • Select Select.
11. For other fields, keep the default values.

The AKS cluster, WebLogic base image, and Jakarta EE application are now configured.

Next, you configure load balancing. For this task, continue to follow the steps in the Oracle WebLogic Server on AKS user guide, but come back to this page when you reach Load balancing, as shown in the following screenshot. You use the next section to configure the load balancing, then return to the WLS on AKS user guide to complete the deployment.

Configure Application Gateway Ingress Controller

Use the following steps to configure Application Gateway Ingress Controller within the virtual network.

1. For Connect to Azure Application Gateway?, select Yes.
2. Under Configure virtual networks, for Virtual network, select the virtual network you created. This example uses myVNet in myResourceGroup. For Subnet, select the subnet for Application Gateway. This example uses myAppGatewaySubnet.
3. For Select desired TLS/SSL certificate option, select Generate a self-signed front-end certificate.
4. For Create ingress for Administration Console, select Yes to expose the WebLogic Administration Console.
5. For the other fields, keep the default values.

You can now continue with the other aspects of the WLS deployment as described in the Oracle WebLogic Server on AKS user guide.

Validate successful deployment of WLS

This section shows you how to quickly validate the successful deployment of the WLS cluster and Application Gateway Ingress Controller.

After the deployment completes, select Outputs, then find the external URL of the WebLogic Administration Console and the cluster. Use the following instructions to access these resources:

• To view the WebLogic Administration Console, first copy the value of the output variable adminConsoleExternalUrl. Next, paste the value into your browser address bar and press Enter to open the sign-in page of the WebLogic Administration Console.
• To view the WebLogic cluster, first copy the value of the output variable clusterExternalUrl. Next, use this value to construct the sample application URL by applying it to the following template: ${clusterExternalUrl}testwebapp/. Now paste the application URL into your browser address bar and press Enter. The sample application shows the private address and hostname of the pod that the Application Gateway Ingress Controller is routing to.

Clean up resources

If you're not going to continue to use the WLS cluster, delete the virtual network and the WLS Cluster with the following Azure portal steps:

1. Visit the overview page for the resource group myResourceGroup, then select Delete resource group.
2. Visit the overview page for the resource group that you deployed the WLS on AKS offer, then select Delete resource group.

Next steps

Continue to explore options to run WLS on Azure.
