Tutorial: Add OPC UA assets to your Azure IoT Operations cluster

In this tutorial, you manually add OPC UA assets to your Azure IoT Operations cluster. These assets publish messages to the MQTT broker in your Azure IoT Operations cluster. Typically, an OT user completes these steps.

An asset is a physical device or logical entity that represents a device, a machine, a system, or a process. For example, a physical asset could be a pump, a motor, a tank, or a production line. A logical asset that you define can have properties, stream data points, or generate events.

OPC UA servers are software applications that communicate with assets. OPC UA tags are data points that OPC UA servers expose. OPC UA tags can provide real-time or historical data about the status, performance, quality, or condition of assets.

In this tutorial, you use the operations experience web UI to create your assets. You can also use the Azure CLI to complete some of these tasks.

Prerequisites

An instance of Azure IoT Operations with secure settings enabled deployed in a Kubernetes cluster. To create an instance, use one of the following to deploy Azure IoT Operations:

• Quickstart: Run Azure IoT Operations in GitHub Codespaces with K3s provides simple instructions to deploy an Azure IoT Operations instance that you can use for the tutorials. Then, to enable secure settings follow the steps in Enable secure settings in Azure IoT Operations.
• Deployment overview provides detailed instructions to deploy an Azure IoT Operations instance on Windows using Azure Kubernetes Service Edge Essentials or Ubuntu using K3s. Follow the steps in the deployment article for a secure settings deployment.

After you enable secure settings, the resource group that contains your Azure IoT Operations instance also contains the following resources:

• An Azure Key Vault instance to store the secrets to synchronize into your Kubernetes cluster.
• A user-assigned managed identity that Azure IoT Operations uses to access the Azure Key Vault instance.
• A user-assigned managed identity that Azure IoT Operations components such as data flows can use to uses to connect to cloud endpoints such as Azure Event Hubs.

Ensure that when you configure secure settings that you give your user account permissions to manage secrets with the Key Vault Secrets Officer role.

To sign in to the operations experience web UI, you need a Microsoft Entra ID account with at least contributor permissions for the resource group that contains your Kubernetes - Azure Arc instance. To learn more, see Operations experience web UI.

Unless otherwise noted, you can run the console commands in this tutorial in either a Bash or PowerShell environment.

What problem will we solve?

The data that OPC UA servers expose can have a complex structure and can be difficult to understand. Azure IoT Operations provides a way to model OPC UA assets as tags, events, and properties. This modeling makes it easier to understand the data and to use it in downstream processes such as the MQTT broker and data flows.

The tutorial also explains how to use credentials stored in Azure Key Vault to authenticate to the simulated OPC UA server.

Deploy the OPC PLC simulator

This tutorial uses the OPC PLC simulator to generate sample data. To deploy the OPC PLC simulator:

1. Download the opc-plc-tutorial-deployment.yaml file from the GitHub repository. To download using the command line, run the following command:

   wget https://raw.githubusercontent.com/Azure-Samples/explore-iot-operations/refs/heads/main/samples/quickstarts/opc-plc-tutorial-deployment.yaml -O opc-plc-tutorial-deployment.yaml


2. Open the opc-plc-tutorial-deployment.yaml file you downloaded in a text editor and change the password for the simulator. The password is set using the --defaultpassword parameter. Make a note of the password value, you need it later. Then, save your changes.

3. To deploy the OPC PLC simulator to your cluster, run the following command:

   kubectl apply -f opc-plc-tutorial-deployment.yaml


The following snippet shows the YAML file that you applied:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: opc-plc-000000
  namespace: azure-iot-operations
  labels:
    app.kubernetes.io/component: opcplc-000000
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/component: opcplc-000000
  template:
    metadata:
      labels:
        app.kubernetes.io/component: opcplc-000000
    spec:
      containers:
      - name: opc-plc
        image: mcr.microsoft.com/iotedge/opc-plc:latest
        args:
          - "--plchostname=opcplc-000000"
          - "--portnum=50000"
          - "--certdnsnames=opcplc-000000"
          - "--unsecuretransport"
          - "--showpnjsonph"
          - "--slownodes=5"
          - "--slowrate=10"
          - "--fastnodes=10"
          - "--fasttypelowerbound=212"
          - "--fasttypeupperbound=273"
          - "--fasttyperandomization=True"
          - "--veryfastrate=1000"
          - "--guidnodes=1"
          - "--appcertstoretype=FlatDirectory"
          - "--dontrejectunknownrevocationstatus"
          - "--disableanonymousauth"
          - "--defaultuser=contosouser"
          - "--defaultpassword=contosouserpassword"
        ports:
        - containerPort: 50000
        volumeMounts:
          - name: opc-plc-default-application-cert
            mountPath: /app/pki/own
          - name: opc-plc-trust-list
            mountPath: /app/pki/trusted
      volumes:
        - name: opc-plc-default-application-cert
          secret:
            secretName: opc-plc-default-application-cert
        - name: opc-plc-trust-list
          secret:
            secretName: opc-plc-trust-list
      serviceAccountName: opcplc-000000-service-account
---
apiVersion: v1
kind: Service
metadata:
  name: opcplc-000000
  namespace: azure-iot-operations
  labels:
    app.kubernetes.io/component: opcplc-000000
spec:
  type: ClusterIP
  selector:
    app.kubernetes.io/component: opcplc-000000
  ports:
    - port: 50000
      protocol: TCP
      targetPort: 50000
---
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: opc-plc-self-signed-issuer
  namespace: azure-iot-operations
  labels:
    app.kubernetes.io/component: opcplc-000000
spec:
  selfSigned: {}
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: opc-plc-default-application-cert
  namespace: azure-iot-operations
  labels:
    app.kubernetes.io/component: opcplc-000000
spec:
  secretName: opc-plc-default-application-cert
  duration: 2160h # 90d
  renewBefore: 360h # 15d
  issuerRef:
    name: opc-plc-self-signed-issuer
    kind: Issuer
  commonName: OpcPlc
  dnsNames:
    - opcplc-000000
    - opcplc-000000.azure-iot-operations.svc.cluster.local
    - opcplc-000000.azure-iot-operations
  uris:
    - urn:OpcPlc:opcplc-000000
  usages:
    - digital signature
    - key encipherment
    - data encipherment
    - server auth
    - client auth
  privateKey:
    algorithm: RSA
    size: 2048
  encodeUsagesInRequest: true
  isCA: false
---
apiVersion: v1
kind: Secret
metadata:
  name: opc-plc-trust-list
  namespace: azure-iot-operations
  labels:
    app.kubernetes.io/component: opcplc-000000
data: {}
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: opcplc-000000-service-account
  namespace: azure-iot-operations
  labels:
    app.kubernetes.io/component: opcplc-000000
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: opc-plc-000000-secret-access-role
  namespace: azure-iot-operations
rules:
- apiGroups: [""]
  resources: ["secrets"]
  verbs: ["get", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: opc-plc-000000-secret-access-rolebinding
  namespace: azure-iot-operations
subjects:
- kind: ServiceAccount
  name: opcplc-000000-service-account
  namespace: azure-iot-operations
roleRef:
  kind: Role
  name: opc-plc-000000-secret-access-role
  apiGroup: rbac.authorization.k8s.io

Establish mutual trust

Before the OPC PLC simulator can send data to the connector for OPC UA, you need to establish mutual trust between them. In this tutorial, the OPC PLC simulator and the connector for OPC UA use self-signed certificates to establish the mutual trust with the connector for OPC UA:

• The simulator's application instance certificate is stored in the opc-plc-default-application-cert Kubernetes secret.
• The connector for OPC UA's application instance certificate is stored in the aio-opc-opcuabroker-default-application-cert Kubernetes secret.

Add the connector's certificate to the simulator's trust list

Each OPC UA server has its own mechanism for managing the trust list. To add the connector's certificate to the simulator's trust list, run the following commands:

cert=$(kubectl -n azure-iot-operations get secret aio-opc-opcuabroker-default-application-cert -o jsonpath='{.data.tls\.crt}' | base64 -d)
data=$(kubectl create secret generic temp --from-literal=opcuabroker.crt="$cert" --dry-run=client -o jsonpath='{.data}')
kubectl patch secret opc-plc-trust-list -n azure-iot-operations -p "{\"data\": $data}"

$cert = kubectl -n azure-iot-operations get secret aio-opc-opcuabroker-default-application-cert -o jsonpath='{.data.tls\.crt}' | base64 -d
$data = kubectl create secret generic temp --from-literal=opcuabroker.crt="$cert" --dry-run=client -o jsonpath='{.data}'
kubectl patch secret opc-plc-trust-list -n azure-iot-operations -p "{""data"": $data}"

Add the simulator's certificate to the connector's trust list

Every OPC UA server type has its own mechanism for managing its application instance certificate. To download the simulator's certificate to a file called opcplc-000000.crt, run the following command:

kubectl -n azure-iot-operations get secret opc-plc-default-application-cert -o jsonpath='{.data.tls\.crt}' | base64 -d > opcplc-000000.crt

To add the simulator's certificate to the connector's trust list:

1. Go to the operations experience web UI and sign in with your Microsoft Entra ID credentials.

2. Select your site. If you're working with a new deployment, there are no sites yet. You can find the cluster you created in the previously by selecting View unassigned instances. In the operations experience, an instance represents a cluster where you deployed Azure IoT Operations.



3. Select the instance where you deployed Azure IoT Operations:



   Tip

   If you don't see any instances, you might not be in the right Microsoft Entra ID tenant. You can change the tenant from the top right menu in the operations experience.

4. Select Asset endpoints and then Manage certificates and secrets:



5. On the Certificates page, select Trust list and then Add new certificate:



6. Select Upload certificate and choose the opcplc-000000.crt file you downloaded previously. Then select Upload:



7. Select Apply.

The simulator's application instance certificate is now in the connector for OPC UA's trust list.

Add an asset endpoint

In this step, you use the operations experience to add an asset endpoint that enables you to connect to the OPC PLC simulator. To add an asset endpoint:

1. Select Asset endpoints and then Create asset endpoint:



2. Enter the following endpoint information:

   Field	Value
   Asset endpoint name	opc-ua-connector-0
   OPC UA server URL	opc.tcp://opcplc-000000:50000
   User authentication mode	Username password
   Synced secret name	plc-credentials

In this tutorial, you add new secrets to your Azure Key Vault instance from the operations experience web UI. The secrets are automatically synced to your Kubernetes cluster:

1. To add a username reference, select Add reference, then Create new.

2. Enter plcusername as the secret name and contosouser as the secret value. Then select Apply.

3. To add a password reference, select Add reference, then Create new.

4. Enter plcpassword as the secret name and the password you added to the opc-plc-deployment.yaml file as the secret value. Then select Apply.

5. To save the asset endpoint definition, select Create.

This configuration deploys a new asset endpoint called opc-ua-connector-0 to the cluster. You can view the asset endpoint in the Azure portal or you can use kubectl to view the asset endpoints in your Kubernetes cluster:

kubectl get assetendpointprofile -n azure-iot-operations

You can see the plcusername and plcpassword secrets in the Azure Key Vault instance in your resource group. The secrets are synced to your Kubernetes cluster where you can see them by using the kubectl get secret plc-credentials -n azure-iot-operations command. You can also see the secrets in the operations experience on the Manage synced secrets page.

Manage your assets

After you select your instance in operations experience, you see the available list of assets on the Assets page. If there are no assets yet, this list is empty:

Create an asset

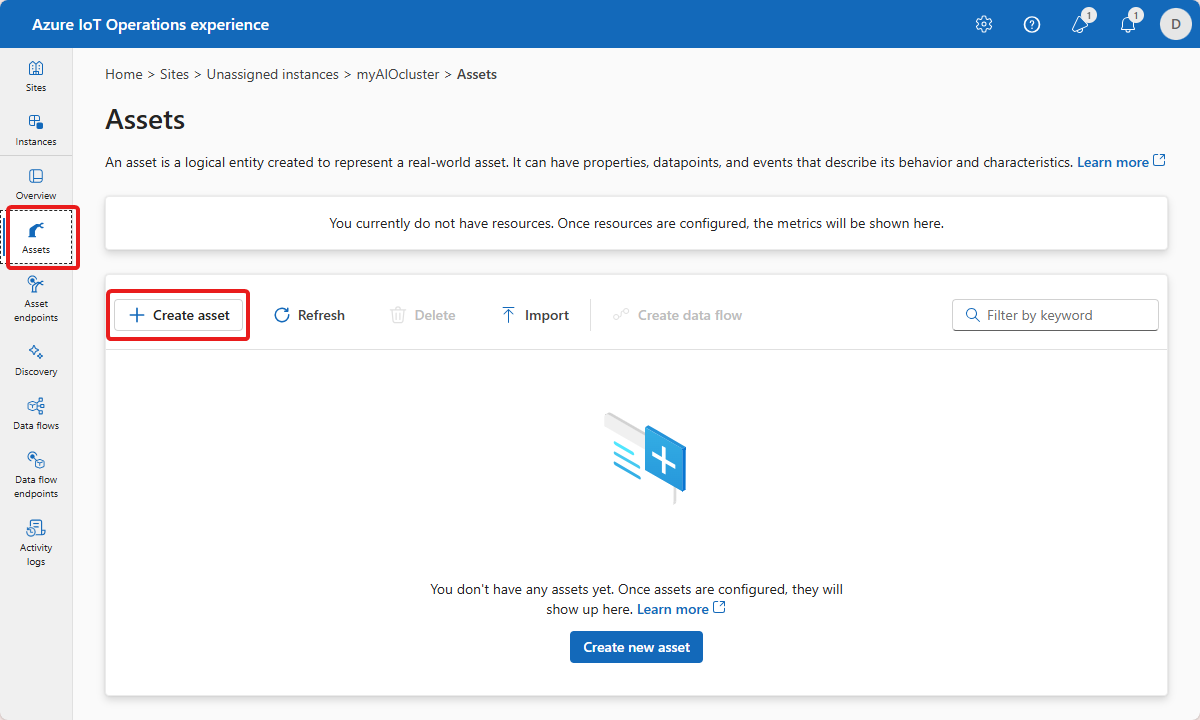

To create an asset, select Create asset. Then enter the following asset information:

Remove the existing Custom properties and add the following custom properties. Be careful to use the exact property names, as the Power BI template in a later tutorial queries for them:

Select Next to go to the Add tags page.

Create OPC UA tags

Add two OPC UA tags on the Add tags page. To add each tag, select Add tag or CSV and then select Add tag. Enter the tag details shown in the following table:

The node ID here is specific to the OPC UA simulator. The node generates random values within a specified range and also has intermittent spikes.

The Observability mode is one of the following values: None, Gauge, Counter, Histogram, or Log.

You can select Manage default settings to change the default sampling interval and queue size for each tag.

Select Next to go to the Add events page and then Next to go to the Review page.

Review

Review your asset and tag details and make any adjustments you need before you select Create:

This configuration deploys a new asset called thermostat to the cluster. You can view your assets in your resource group in the Azure portal. You can also use kubectl to view the assets locally in your cluster:

kubectl get assets -n azure-iot-operations

View resources in the Azure portal

To view the asset endpoint and asset you created in the Azure portal, go to the resource group that contains your Azure IoT Operations instance. You can see the thermostat asset in the Azure IoT Operations resource group. If you select Show hidden types, you can also see the asset endpoint:

The portal enables you to view the asset details. Select JSON View for more details:

Verify data is flowing

Verify data is flowing to the MQTT broker by using the mosquitto_sub tool. In this example, you run the mosquitto_sub tool inside your Kubernetes cluster:

1. Run the following command to deploy a pod that includes the mosquitto_pub and mosquitto_sub tools that are useful for interacting with the MQTT broker in the cluster:

   kubectl apply -f https://raw.githubusercontent.com/Azure-Samples/explore-iot-operations/main/samples/quickstarts/mqtt-client.yaml


   The following snippet shows the YAML file that you applied:

   # Important: do not use in production environments
   # Create a service account
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: mqtt-client
     namespace: azure-iot-operations
   ---
   # Creates a pod with mosquitto-clients and mqttui utilities in your cluster
   apiVersion: v1
   kind: Pod
   metadata:
     name: mqtt-client
     # The namespace must match the IoT MQ BrokerListener's namespace
     # Otherwise use the long hostname: aio-broker.azure-iot-operations.svc.cluster.local
     namespace: azure-iot-operations
   spec:
     # Use the "mqtt-client" service account which comes with default deployment
     # Otherwise create it with `kubectl create serviceaccount mqtt-client -n azure-iot-operations`
     serviceAccountName: mqtt-client
     containers:
       # Install mosquitto and mqttui utilities on Alpine linux
     - image: alpine
       name: mqtt-client
       command: ["sh", "-c"]
       args: ["apk add mosquitto-clients mqttui && sleep infinity"]
       resources:
         limits:
           cpu: 500m
           memory: 200Mi
         requests:
           cpu: 100m
           memory: 100Mi
       volumeMounts:
       - name: broker-sat
         mountPath: /var/run/secrets/tokens
       - name: trust-bundle
         mountPath: /var/run/certs
     volumes:
     - name: broker-sat
       projected:
         sources:
         - serviceAccountToken:
             path: broker-sat
             audience: aio-internal # Must match audience in BrokerAuthentication
             expirationSeconds: 86400
     - name: trust-bundle
       configMap:
         name: azure-iot-operations-aio-ca-trust-bundle # Default root CA cert


   Caution

   This configuration isn't secure. Don't use this configuration in a production environment.

2. When the mqtt-client pod is running, run the following command to create a shell environment in the pod you created:

   kubectl exec --stdin --tty mqtt-client -n azure-iot-operations -- sh


3. At the Bash shell in the mqtt-client pod, run the following command to connect to the MQTT broker using the mosquitto_sub tool subscribed to the data/thermostat topic:

   mosquitto_sub --host aio-broker --port 18883 --topic "azure-iot-operations/data/#" -v --debug --cafile /var/run/certs/ca.crt -D CONNECT authentication-method 'K8S-SAT' -D CONNECT authentication-data $(cat /var/run/secrets/tokens/broker-sat)


   This command continues to run and displays messages as they arrive on the data/thermostat topic until you press Ctrl+C to stop it. To exit the shell environment, type exit.

To verify that the thermostat asset you added is publishing data, view the messages in the azure-iot-operations/data topic:

Client $server-generated/0000aaaa-11bb-cccc-dd22-eeeeee333333 received PUBLISH (d0, q0, r0, m0, 'azure-iot-operations/data/thermostat', ... (92 bytes))
azure-iot-operations/data/thermostat {"temperature":{"SourceTimestamp":"2025-02-14T11:27:44.5030912Z","Value":48.17536741017152}}
Client $server-generated/0000aaaa-11bb-cccc-dd22-eeeeee333333 received PUBLISH (d0, q0, r0, m0, 'azure-iot-operations/data/thermostat', ... (90 bytes))
azure-iot-operations/data/thermostat {"temperature":{"SourceTimestamp":"2025-02-14T11:27:45.50333Z","Value":98.22872507286887}}
Client $server-generated/0000aaaa-11bb-cccc-dd22-eeeeee333333 received PUBLISH (d0, q0, r0, m0, 'azure-iot-operations/data/thermostat', ... (92 bytes))
azure-iot-operations/data/thermostat {"temperature":{"SourceTimestamp":"2025-02-14T11:27:46.503381Z","Value":12.533323356430426}}

If there's no data flowing, restart the aio-opc-opc.tcp-1 pod:

1. Find the name of your aio-opc-opc.tcp-1 pod by using the following command:

   kubectl get pods -n azure-iot-operations


   The name of your pod looks like aio-opc-opc.tcp-1-849dd78866-vhmz6.

2. Restart the aio-opc-opc.tcp-1 pod by using a command that looks like the following example. Use the aio-opc-opc.tcp-1 pod name from the previous step:

   kubectl delete pod aio-opc-opc.tcp-1-849dd78866-vhmz6 -n azure-iot-operations


The sample tags you added in the previous tutorial generate messages from your asset that look like the following example:

{
    "temperature":{
        "Value":24.86898871648548,
        "SourceTimestamp":"2025-04-25T14:50:07.195274Z"
    }
}

How did we solve the problem?

In this tutorial, you added an asset endpoint and then defined an asset and tags. The assets and tags model data from the OPC UA server to make the data easier to use in an MQTT broker and other downstream processes.

You used credentials stored in Azure Key Vault to authenticate to the OPC UA server. This approach is more secure than hardcoding credentials in your asset definition.

You use the thermostat asset you defined in the next tutorial.

Clean up resources

If you're continuing on to the next tutorial, keep all of your resources.

If you want to remove the Azure IoT Operations deployment but keep your cluster, use the az iot ops delete command:

az iot ops delete --cluster $CLUSTER_NAME --resource-group $RESOURCE_GROUP

If you want to delete all the resources you created for this quickstart, delete the Kubernetes cluster where you deployed Azure IoT Operations and then remove the Azure resource group that contained the cluster.

If you used Codespaces for these quickstarts, delete your Codespace from GitHub.

Next step

Tutorial: Send messages from your asset to the cloud using a data flow.
