Introduction to Configuration¶

To open the configuration screen of Insights Hub OEE, click the icon in the navigation tab. The main configuration screen is displayed as shown below:

Insights Hub OEE Configuration Video

The main configuration screen has twelve panes which allows you to configure the displayed items:

• KPIs
• Time Model
• Microstops
• Reason Trees
• Status Mappings
• Products
• Measures
• Reject Reasons
• Quality Codes
• Calendars
• Machines & Lines
• Dashboard Designer

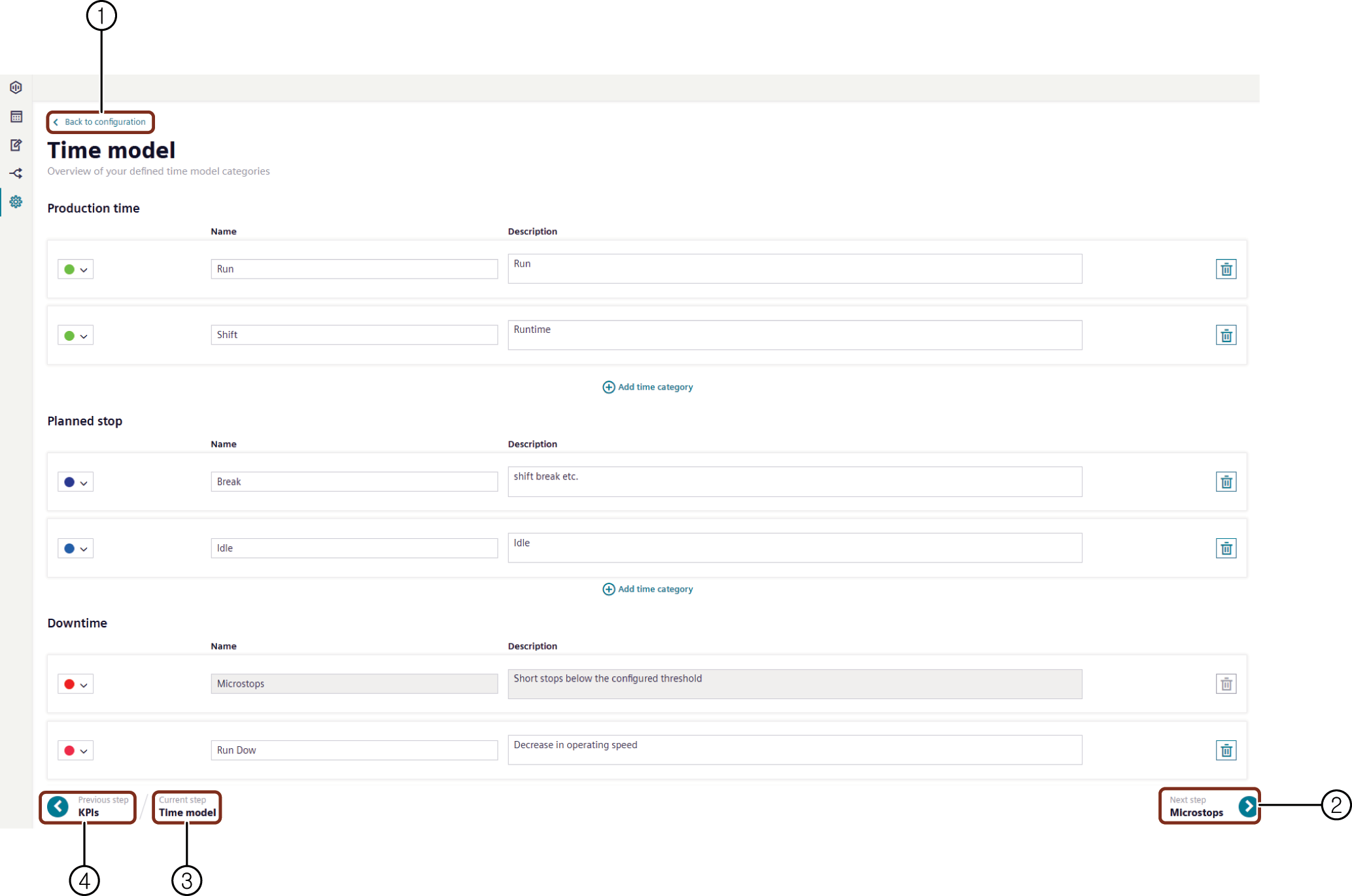

To easily navigate from one step to another in the configuration, a navigation bar is provided at the bottom. It displays the previous step, the current step, and the next step.

① Navigates back to the "Configuration" tab
② Navigates to the next step
③ Displays the current step
④ Navigates to the previous step
